2502-2524 NE 11th

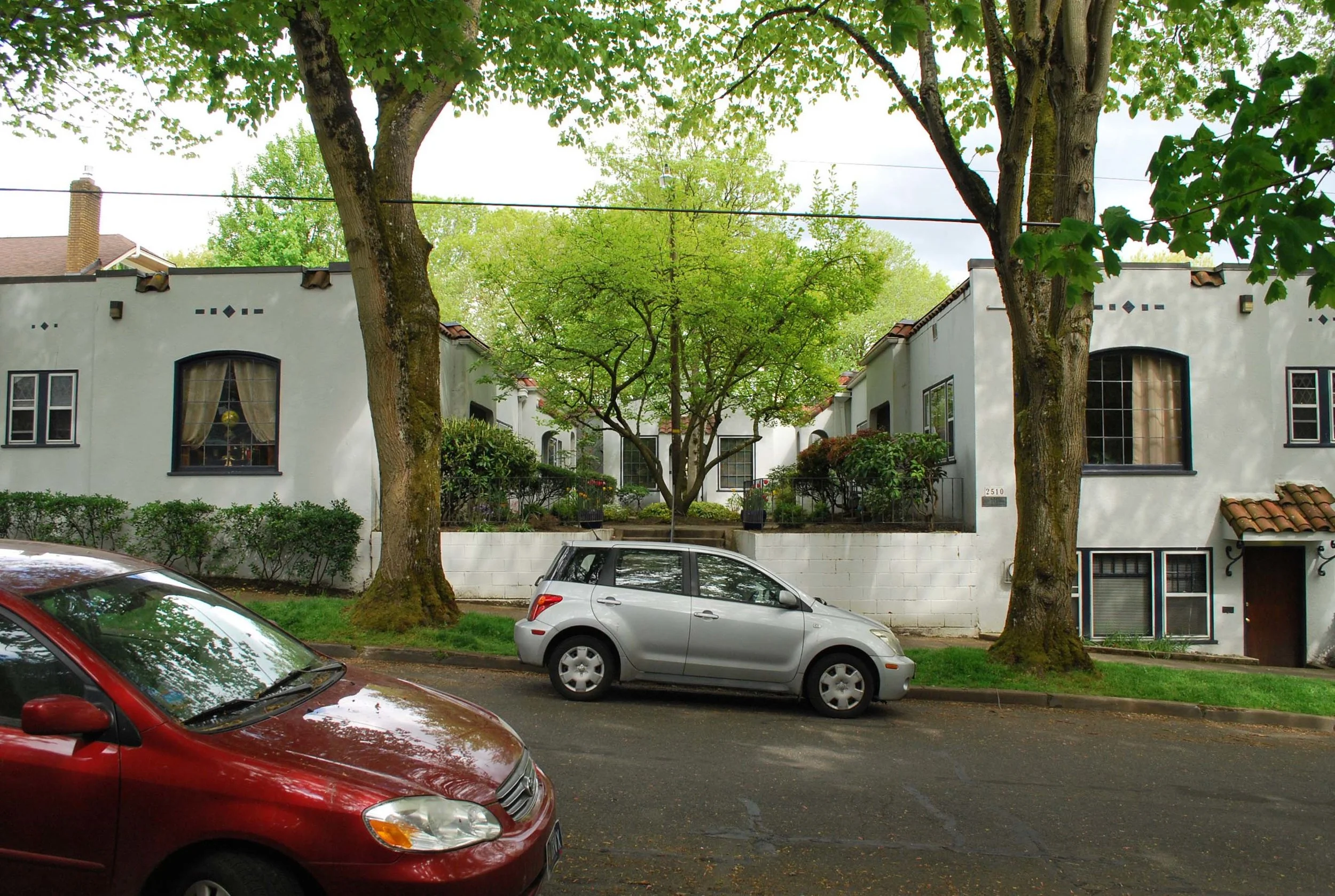

Front View.jpg
  Building Data:  Neighborhood: Irvington Year Built: 1931 Typology: Courtyard Apartment Units: 10 Stories: 1+ Site Area: 10,000sf  Building Area: 6,086sf FAR: 0.6:1 Density: 43.5 du/net acre Zoning: R5 (1 Dwelling/5,000sf) Is it Legal? NO

Building Data:
Neighborhood: Irvington
Year Built: 1931
Typology: Courtyard Apartment
Units: 10
Stories: 1+
Site Area: 10,000sf
Building Area: 6,086sf
FAR: 0.6:1
Density: 43.5 du/net acre
Zoning: R5 (1 Dwelling/5,000sf)
Is it Legal? NO

This courtyard project in Irvington is a fine specimen of the courtyard typology and illustrates one of its common variants. Like most bungalow courtyards, the project is configured in a U-shape with the open end facing the street. This example illustrates a common adaptation of the courtyard when built on a corner lot; the sloping site and side access allows a row of garages beneath the side street-facing wing. This is in very common in 1920s courtyard buildings on corner sites. Additionally, the end of the wing on the corner accommodates a bonus unit. This is possible since the basement level is at street grade here. The main level wings have three units each for a total of nine. The downside to this arrangement is a large blank wall at street level and a long linear curb cut. This creates a less than ideal streetscape.



  Elevated courtyard provides privacy and transitional space

Elevated courtyard provides privacy and transitional space

  Basement bonus unit

Basement bonus unit

  Garages, with catwalk for unit back doors above

Garages, with catwalk for unit back doors above

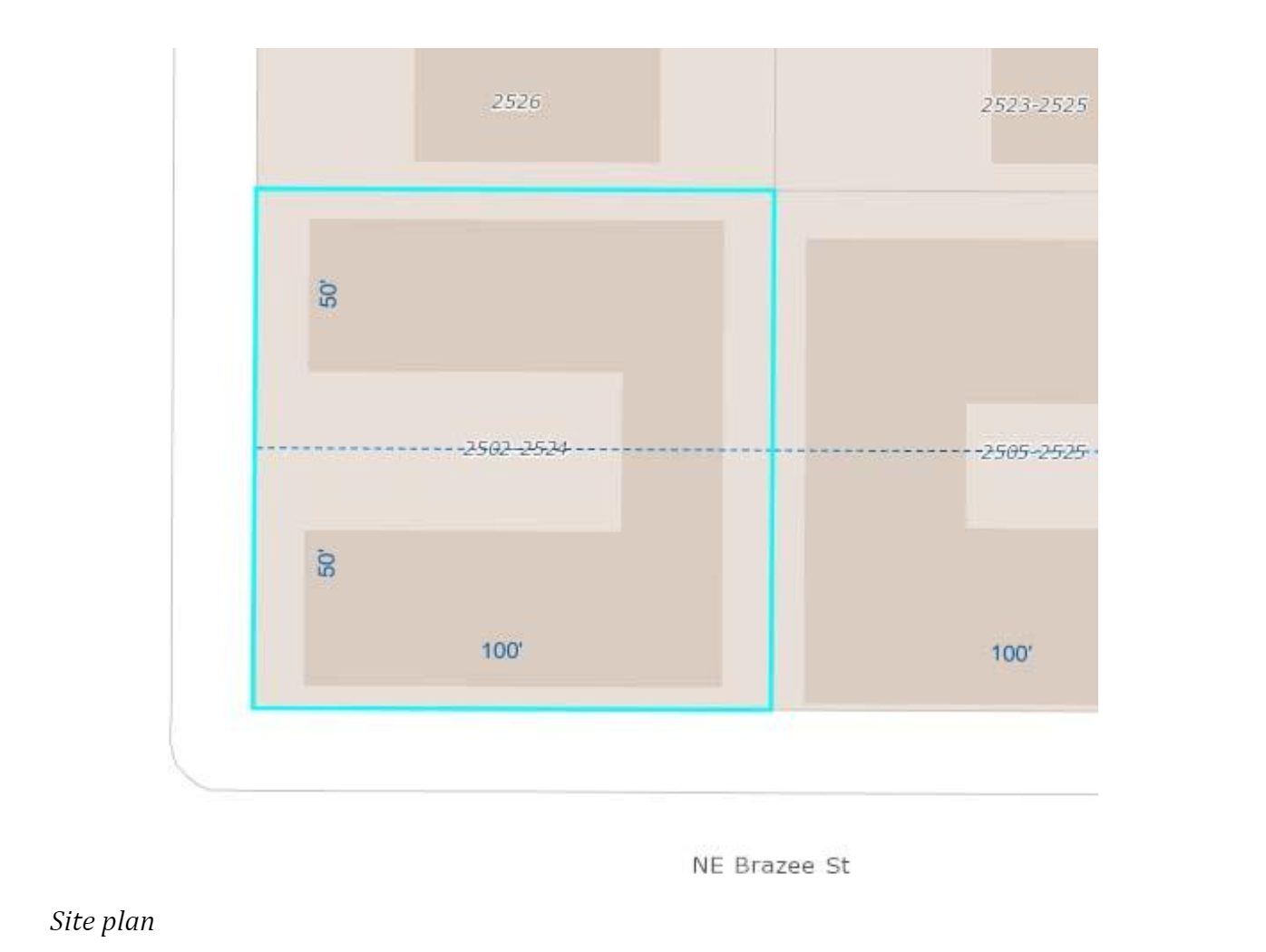

ne 11 site plan.png
