1309 N Killingsworth St

1309 Killingsworth Axon.jpg

Building Data:
Neighborhood: Overlook
Year Built: 1943
Typology: Courtyard Apartment
Units: 9
Stories: 1
Site Area: 10,000sf
Building Area: 5,327
FAR: 0.53:1
                                                                                         Density: 39.2 du/net acre
                                                                                         Zoning: CM2 (no max density, 45’ height)
                                                                                         Is it Legal? YES

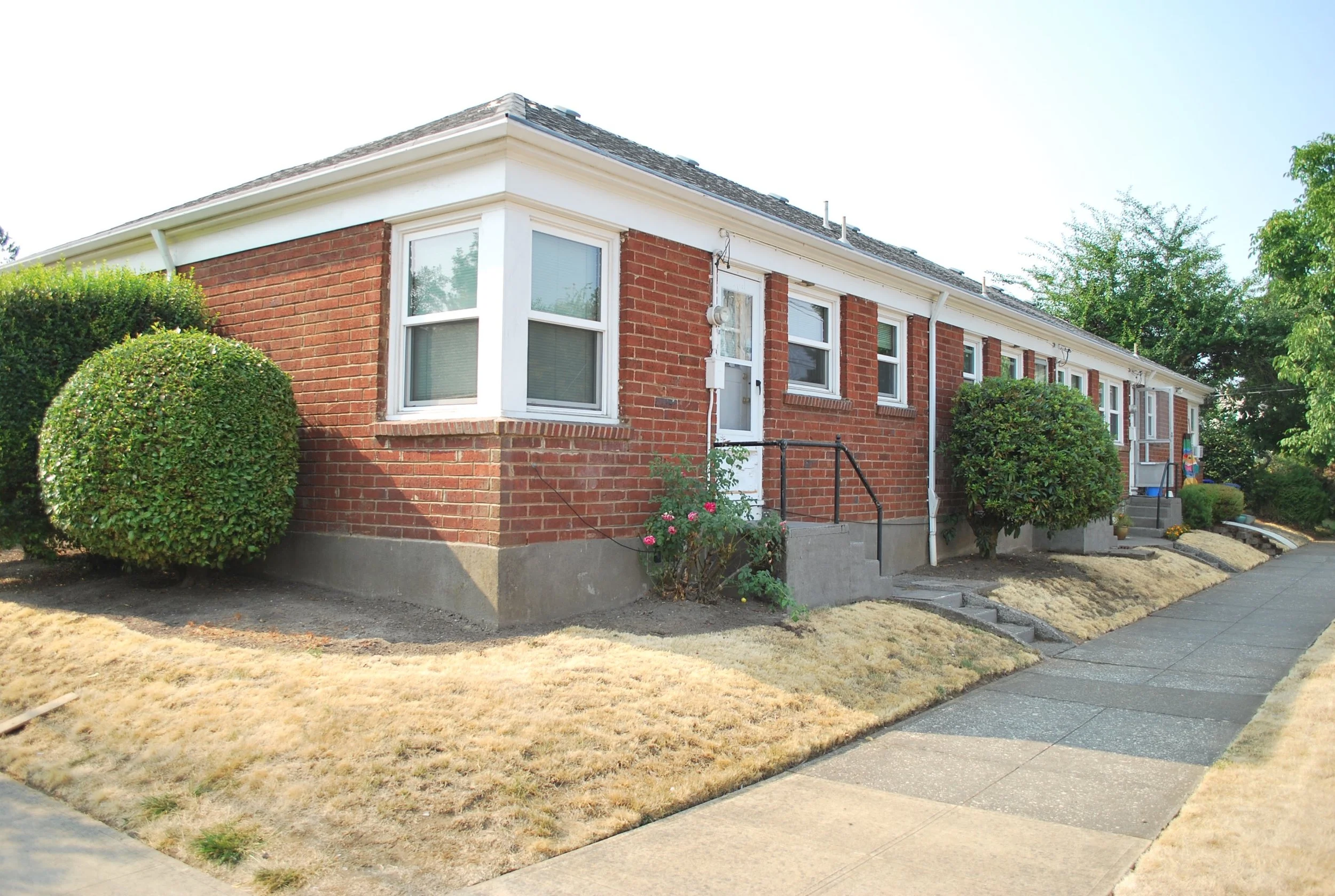

  Back doors of units along east wing

Back doors of units along east wing

1309 N Killingworth represents the courtyard apartment typology in its simplest, most basic form. (As we will see, there are many variants on this typology) The building is a single-story, u-shaped bungalow courtyard with the open end facing the street. The individual apartments’ front doors face the courtyard and access the street via the shared space. All units are through-units, meaning they have at least two window-walls, front and back. End units have three. All units also have a front and a back door.

  Courtyard and main entries

Courtyard and main entries

The courtyard is the dominant feature of this building type. It provides a shared semi-private open space that is set apart from the public realm of the sidewalk. This case study building is not set very high off the ground plane, and the landscaping is somewhat uninspired, but other examples can be found where the grade shift to the courtyard, and landscaping make a clearer transition between the street and create an enjoyable shared courtyard.

A feature that many residents enjoy is the fact that their units open directly into the open air, and not a shared hallway, making living here more like the experience of a house and less like a more anonymous apartment building. We will post more case studies exploring the many variants on the courtyard building and their advantages and disadvantages.
